2B9-230 Goodyear Air Spring Replacement 578-92-3-202 Industrial Rubber Air Bellows

Productdetails:

Plaats van herkomst:	Guangzhou, China
Merknaam:	GUOMAT
Certificering:	ISO/Ts16949:2009
Modelnummer:	2B6940

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	5 stuks
Prijs:	USD59.9-69.9/PC
Verpakking Details:	Sterke kartonnen doos of als eis van de klant
Levertijd:	3-7 werkdagen
Betalingscondities:	L/C, T/T, Western Union of anderen
Levering vermogen:	1000 stks/week

Contact

Gedetailleerde productomschrijving

Modelnaam:	van rubberen luchtballons	Drukvermogen:	0.2-0.8 M-PA
Handelsmerk:	Guomat	Oorsprong:	Kanton, China
HS-code:	8708809000	Goed jaar:	2B9-230 / 578-92-3-202
bufferblok:	met	Firestone:	W013586940
Markeren:	Goodyear air spring replacement , industrial rubber air bellows , 2B9-230 air spring

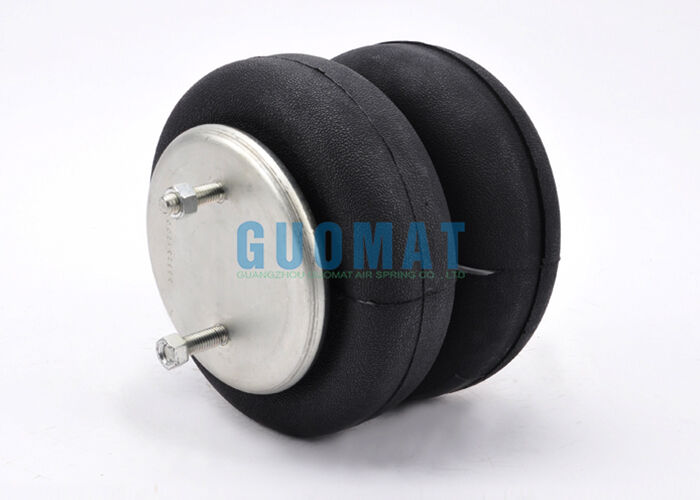

2B9-230 Goodyear Air Spring Replacement 578-92-3-202 Industrial Rubber Air Bellows

A rubber air spring is a suspension system component that combines rubber materials and air pressure. It adjusts suspension stiffness and travel by inflating and regulating the pressure of the internal air chamber. Rubber air springs effectively absorb road impacts, providing a smoother driving experience and reducing the impact of vibrations on the vehicle and its occupants. Compared to traditional metal springs, rubber air springs offer better flexibility and adaptability, allowing for adjustments to suspension performance based on different loads and road conditions. Furthermore, rubber air springs are simple in structure, lightweight, and have low maintenance costs, making them widely used in trucks, commercial vehicles, and modified vehicles.

Product Details

GUOMAT Number: 2B6940

Type: Double Convoluted Type

Material: Rubber and Steel

Warranty: 1 Year

Cross-Reference Numbers

GOODYEAR: 2B9-230, 2B 9-230, 2B9230
GOODYEAR Bellows: 578-92-3-202, 578 92 3 202, 578923202
CONTITECH: 64513, FD 200-19 450, FD200-19 450
FIRESTONE: 6940, W01-358-6940, W01 358 6940, W013586940
AUTOMANN: ABSP2B12R-6940
TRIANGLE: 4450
TRP: AS6940

Technical Specifications

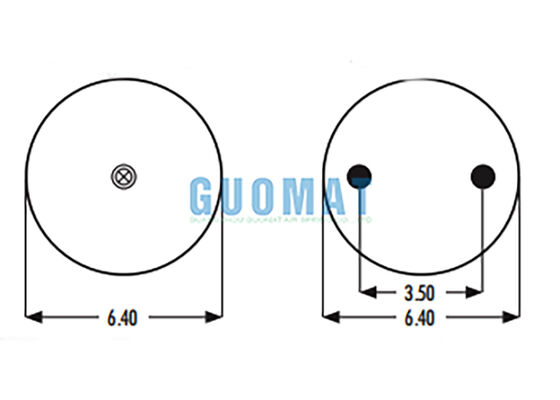

Top Plate: 1 hole/stud, 6.4-inch diameter

Bottom Plate: 2 holes/studs, 6.4-inch diameter, 3.5-inch bolt circle diameter, parallel to top plate

Bumper: Yes

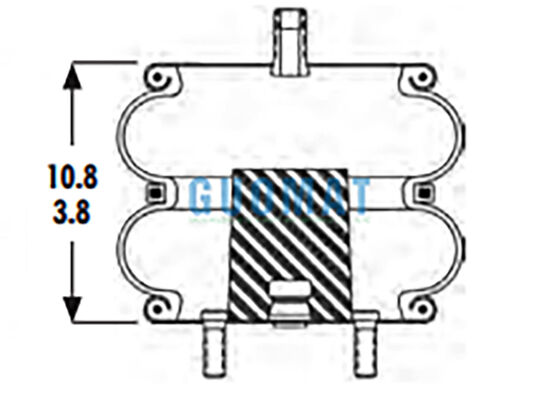

Height Range: 3.8 in (min.) to 10.8 in (max.)

Total Stroke: 7.0 in

Main Characteristics and Application Areas

Feature	Description
Structure	Made of rubber layers, metal support rings, and air chamber. Air pressure adjusts hardness and height.
Working Principle	Air pressure regulates spring stiffness, rubber provides elastic support.
Advantages	Excellent shock absorption High adjustability Improved load capacity Enhanced stability
Applications	Automotive suspension systems Commercial vehicles & heavy trucks Industrial machinery
Performance Features	Strong durability Wide adaptability Easy to adjust
Disadvantages	Higher cost Risk of air leakage
