FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator

FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator

  • FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator
  • FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator
  • FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator
FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator
Productdetails:
Plaats van herkomst: Guangdong, China
Merknaam: GUOMAT
Certificering: ISO/TS16949:2009
Modelnummer: 1B53011
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 6 stks
Prijs: $49.9-59.9/pc
Verpakking Details: Sterke doos of zoals klanten nodig hebben
Levertijd: 2-8 werkdagen
Betalingscondities: L/C, T/T, Western Union
Levering vermogen: 1000 stcs/week
Contact
Gedetailleerde productomschrijving
Productnaam: De luchtlente/Luchtkussen/Luchtopschorting Garantie: 1 jaar
Materiaal: Rubber + staal Verpakking: Bruin karton
Voorwaarde: 100% gloednieuw OEM: ContitechFS530-11
Gewicht: 5,9 kg Kleur: Zwart
Markeren:

Contitech industrial air spring

,

51mm-175mm stroke air actuator

,

convolution air actuator with warranty

FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator

FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator is a high-performance air suspension component designed for industrial applications.

Product Details
  • Type: Single Convoluted Air Suspension Airbag
  • Model Number: 1B53011
  • Condition: Brand New
  • Material: Rubber + Steel
  • Warranty: 12 Months
  • Delivery Time: About 2-8 working days after receiving payment
Airbag Parameters
Cover Plate
Top Cover Plate Diameter 287mm
Bottom Cover Plate Diameter 287mm
Air Inlet
Options G1/4; G3/4; G1
Blind Nut
Screw Center Distance Of Top Cover Plate 158.8mm
Screw Center Distance Of Bottom Cover Plate 158.8mm
Screw And Gas Hole Diameter Of Top Cover Plate 79.4mm
Top Cover Plate Screw (Nut) Tooth 4XM8X1.25
Bottom Cover Plate Screw (Nut) Tooth 4XM8X1.25
Rubber Bellow
Rubber Bellow MAX Diameter 385mm
The Working Stroke MAX 175mm to MIN 51mm
Maximum Height 175mm
Minimum Height 51mm
Compression Height 124mm
OEM Numbers
  • Contitech FS530-11
  • Contitech FS 530-11
  • Contitech FS530-11 CI
  • Contitech FS 530-11 CI
Vibration Isolation - Dynamic Characteristic Values
Pressure P bar 3 4 5 6 7 8 Vol V(I)
Force(Load) KN 15.2 20.1 26.5 31.6 36.9 42.2 10
Spring Rate N/mm 397 500 608 710 813 915
Natural Frequenz f0 Hz 2.6 2.5 2.4 2.4 2.3 2.3
Pressure P bar 3 4 5 6 7 8 Vol V(I)
height H(mm) 150 14.3 19 25 30 35 40 10
130 17.8 23.7 30.5 36.3 42.7 49.1 9.4
110 20.6 27.4 34.8 41.6 49 56 8.4
90 22.8 30 38.1 46 53.9 61.6 7.1
70 24.3 32 41.2 48.8 57.4 65.5 5.3
We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.

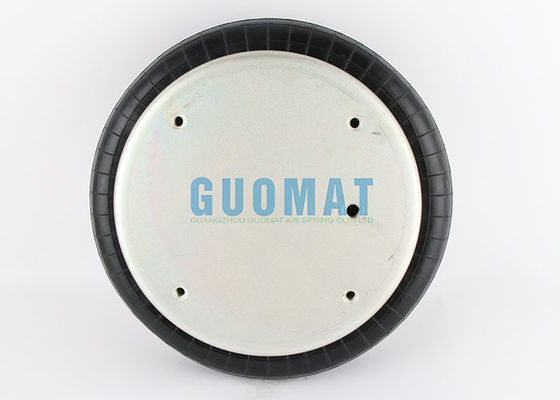

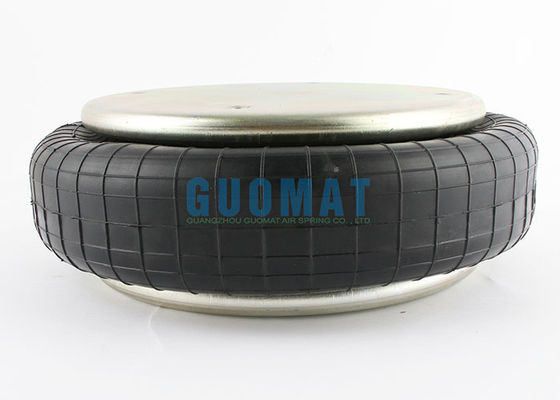

FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator 0 FS530-11 Contitech Industrial Air Spring 51mm-175mm Stroke Convolution Air Actuator 1
