Universal Air Lift Bag 245 Model 93740 Double Convoluted Air Spring For Industrial Machine

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	GUOMAT
Certificering:	ISO/TS16949:2009
Modelnummer:	2H250180

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	6 stks
Prijs:	$139.9-149.9/pc
Verpakking Details:	Sterke doos of zoals klanten nodig hebben
Levertijd:	2-8 werkdagen
Betalingscondities:	L/C, T/T, Western Union
Levering vermogen:	1000 stcs/week

Contact

Gedetailleerde productomschrijving

Productnaam:	Industriële luchtveer/airbags/luchtballons/luchtlift	Materiaal:	Het Rubber van de hoogtekwaliteit
Garantie:	12 maanden	OEM:	Beschikbaar
Kruisnr.:	Tor-Press 245-model	Standaard:	93740
Convoluties:	2	Verbindingsgaten:	M 8 x 1,25
Markeren:	Universal Air Lift Bag 245 , Double Convoluted Air Spring , Industrial Machine Air Spring

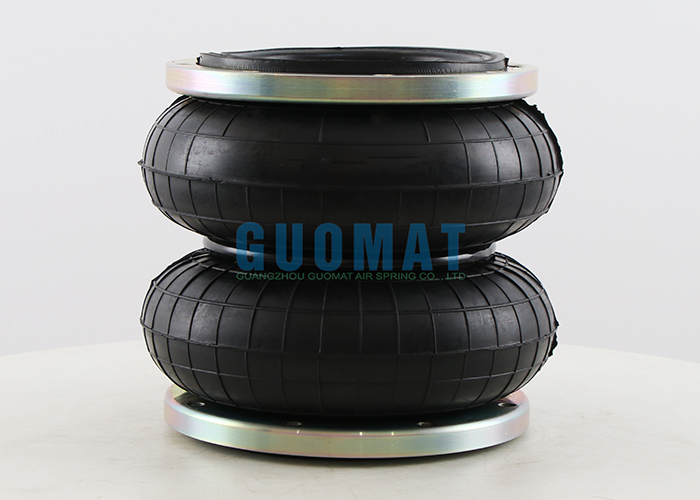

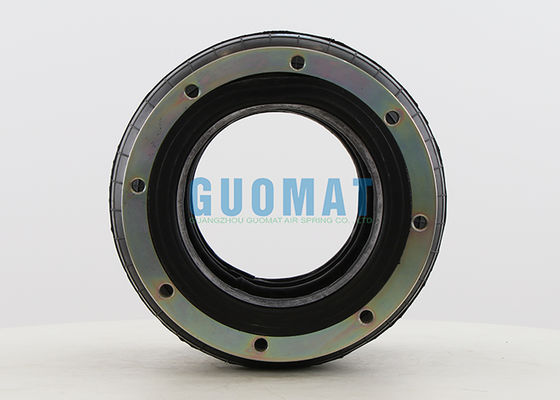

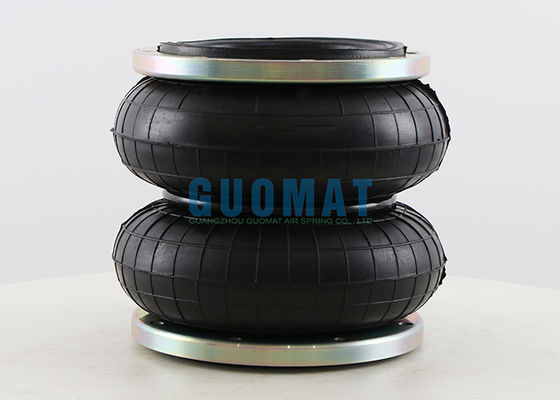

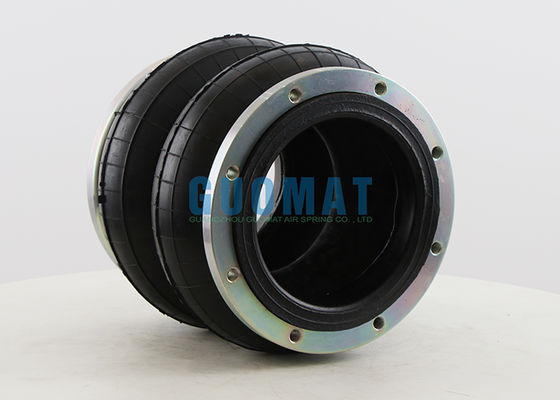

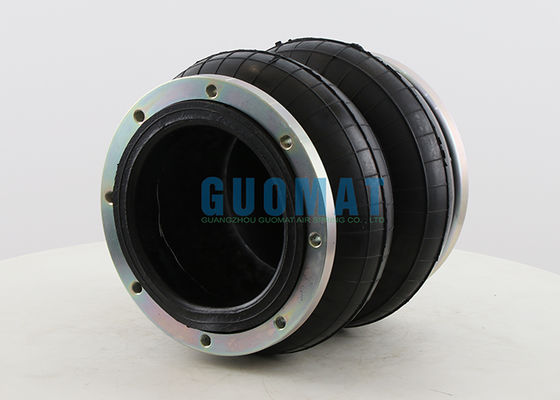

Universal Air Lift Bag 245 Model 93740 Double Convoluted Air Spring For Industrial Machine

Brand: GUOMAT

Model: 2H250180

Replace Tor-press 245

Replace Standard Code 93740

Technical Data

Connection	F1
Max.OD	270 mm
Min.Height	85 mm
Max.Height	245 mm
Static Height	165 mm
Effec.Area	169 cm2
Cap.	1150 daN
Freq.	127 cicli/1'
Stiffness	12 DaN/mm
Threaded Air Hole	-
Center Distance of Holes	145 mm
Flange Diameter	200 mm
Connecting Number	8pcs
Bolts or Holes	M8X1.25

Total Travel	225mm
Thrusts Max.	2680daN
Thrusts Min.	740daN

Thrusts in daN Pressures P=0.6 MPa (6 bar) Based On Travel	Travel in mm
2680	(0)
2620	(20)
2560	(40)
2460	(60)
2320	(80)
2160	(100)
1960	(120)
1760	(140)
1540	(160)
1300	(180)
1060	(200)
810	(220)

How Do Air Springs with Flange Connections Operate?

Simply put, flange-connected air springs change their internal air pressure by filling and expelling compressed air, thus achieving functions such as height adjustment, load support, and vibration damping/isolation.

Inflation (Raising/Loading)

Compressed air is filled into the air chamber, increasing the internal pressure. This causes the air chamber to expand, increasing its height and thus lifting the load above it, providing rigid support.

Deflation (Lowering/Unloading)

The compressed air is released from the air chamber, decreasing the internal pressure. The air chamber contracts under the weight of the load, lowering its height, and the load decreases accordingly.

Maintaining (Constant Support)

After filling with an appropriate amount of air, the system is closed to maintain a constant internal air pressure, thus providing a stable support height and load-bearing capacity.
