FT 614-36 DS Contitech Industrial Air Spring 14''1/2X3 Triple Convoluted Type Rubber Bellows

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	GUOMAT
Certificering:	ISO/TS16949, ISO9001
Modelnummer:	3B14.5X3T

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1
Prijs:	onderhandelbaar
Verpakking Details:	Sterke doos of als klanten vereisen
Levertijd:	5-8 werkdagen
Betalingscondities:	L/C, D/A, D/P, Western Union
Levering vermogen:	1000 stcs/week

Contact

Gedetailleerde productomschrijving

Garantie:	Eén jaar	Schroef Bout):	M10
Transportpakket:	Dozen	Handelsmerk:	Guomat
Functie:	Verminder trilling	Contitech:	FT 614-36 DS
Brandstof:	W01R584065	Blaasbalgen Nr.:	14''1/2X3
Markeren:	Contitech industrial air spring , Triple convoluted rubber bellows , 14.5x3 air spring bellow

FT 614-36 DS Contitech Industrial Air Spring 14''1/2X3 Triple Convoluted Type Rubber Bellows

Product Introduction

Flange air spring is an ideal choice for air suspension system. It is a device that provides support and shock absorption through compressed air and is widely used in vehicles such as cars, trucks, motorcycles, etc. Compared with traditional steel springs, flange air springs have more advantages and functions.

Brand: GUOMAT

Model Number: 3B14.5X3T

Material: Rubber and Steel

Warranty: 1 Year

Compatible Replacement Parts

Continental ContiTech: FD 614-36 DS 68047

Continental ContiTech: FD 614-36 1/2 M10

Continental ContiTech: FD 614-36 DS G1/2

Continental ContiTech: FD 614-36 DS G1/2 M10

Continental ContiTech: FD 614-36 DS / FD614-36DS / FD614 36DS

Continental ContiTech Bellow: FD 614-36/FD314-36/FD31436

Firestone No.:W01-R58-4065/W01R58 4065/W01R584065

Firestone No.: W01-R58-4065/W01R58 4065/W01R584065

Firestone Style:14"1/2x2/14"1/2x2/14.5x2

Dunlop FR: 14"1/2 x2 SP1558

Norgren: M/31143/M 31143/M31143

NominalØ (inch)x convolutions: 14"1/2x2/14"1/2x2/14.5x2

Parker: 14''1/2x2 9109069

Technical Data

Specification	Value
Maximum Height	480mm
Minimum Height	100mm
Cover Plate Diameter	310mm
Bolts	M10
Air Fitting	G1/2
Center Distance Between Bolts	282.5mm
Maximum Outer Diameter	400mm

Height H(mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol V(I)
400	13.3	18	22.8	27.9	33.3	38.9	28
420	11.8	16	20.4	25	30.1	35.3	28
350	16.7	22.4	28.2	34.2	40.5	46.9	25
300	19.4	26	32.5	39.3	46.3	53.5	22
250	21.8	29	36.4	43.8	51.7	60.5	18
200	24.7	32.9	41.1	49.6	58.5	67.4	14
150	27.6	36.6	45.7	55	64.6	74.2	10

Air Spring Features

Structure: It typically consists of a flexible rubber bladder filled with compressed air (called the "air bladder") and two metal components (called the "upper cover" and the "piston" or "lower cover").

Working Principle: When the external load increases, the air inside the air bladder is compressed, increasing the pressure and thus providing greater support. When the load decreases, the air expands, and the pressure decreases. Its stiffness and height can be precisely controlled by adjusting the internal air pressure.

Main Functions: Vibration isolation, shock absorption, support, and height adjustment.

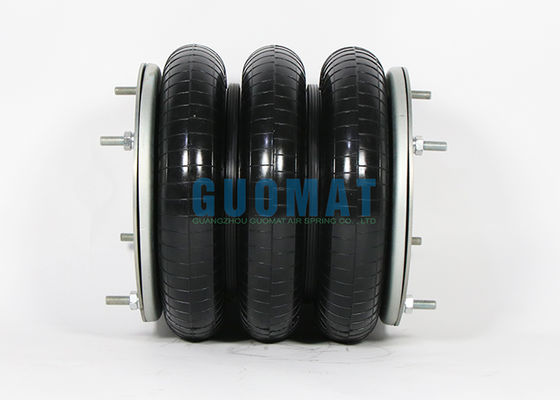

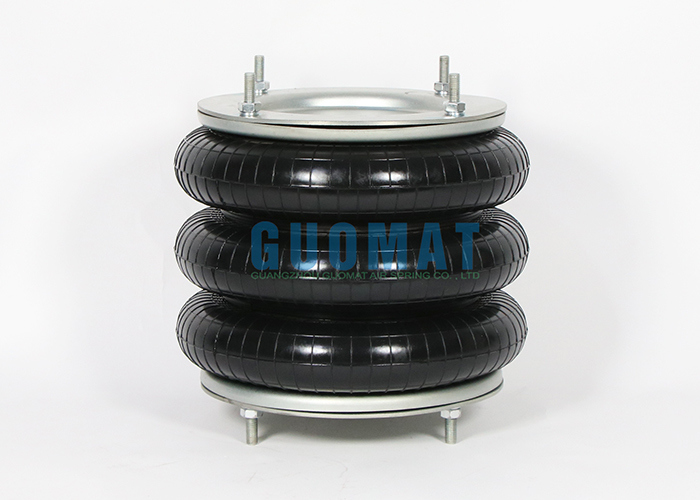

Product Images
