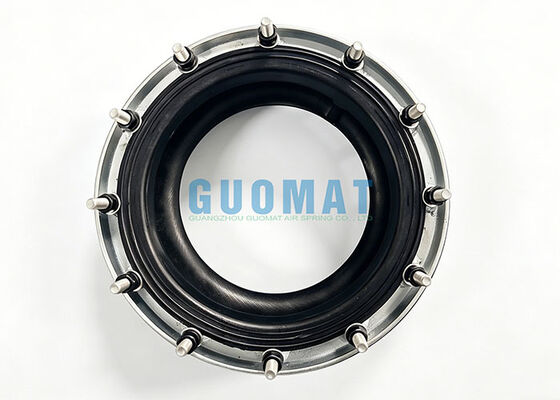

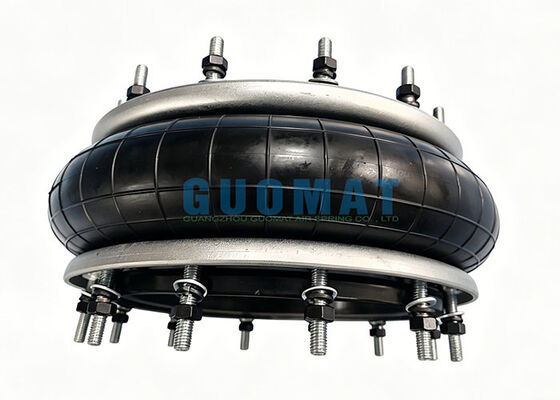

W01-358-7023 Firestone Convoluted Type Air Spring Style 19 Welding Flange Process Rubber Air Bags

W01-358-7023 Firestone Convoluted Type Air Spring Style 19 Welding Flange Process Rubber Air Bags

  • W01-358-7023 Firestone Convoluted Type Air Spring Style 19 Welding Flange Process Rubber Air Bags
  • W01-358-7023 Firestone Convoluted Type Air Spring Style 19 Welding Flange Process Rubber Air Bags
W01-358-7023 Firestone Convoluted Type Air Spring Style 19 Welding Flange Process Rubber Air Bags
Productdetails:
Plaats van herkomst: Guangdong, China
Merknaam: GUOMAT
Certificering: ISO/TS16949:2009
Modelnummer: 1H7023
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 6 stuks
Prijs: $159.9-199.9/pc
Verpakking Details: Sterke kartonnen doos of zoals klanten nodig hebben
Levertijd: 2-8 werkdagen
Betalingscondities: L/C, T/T, Western Union
Levering vermogen: 1000 stks/week
Contact
Gedetailleerde productomschrijving
Productnaam: Flensluchtveer Garantie: 1 jaar
Materiaal: Rubber + staal Operatie: Gasgevuld
Bout: M8*1.25 Cors nummer: Firestone W01-358-7023
Temperatuurbereik: - 40°C / +70°C Stijl: 19
Markeren:

Firestone convoluted air spring

,

welding flange rubber air bags

,

industrial air spring with warranty

W01-358-7023 Firestone Convoluted Type Air Spring Style 19 Welding Flange Process Rubber Air Bags
Product Overview
Brand: GUOMAT
Model Name: 1H7023
Type: Convoluted Type Air Spring
Material: Rubber and Steel
Warranty: 12 Months
OEM & Cross Reference Numbers
FIRESTONE STYLE: 18
FIRESTONE Part Number: W01-358-7023
FIRESTONE Part Number: W01 358 7023
FIRESTONE Part Number: W013587023
FIRESTONE Part Number: WO1-358-7023
FIRESTONE Part Number: WO1 358 7023
FIRESTONE Part Number: WO13587023
Technical Specifications
Flange diameter 250mm
Bolts 12pcs - M8*1.25
Bolt height 36mm
Inner diameter 183.5mm
Natural height 110mm
Minimum height 50.8mm
Maximum height 152.4mm
Welded Flange Air Spring Design

Welded flange air springs use a permanently welded steel flange to connect the top/bottom plate, providing a stronger and more reliable structure compared to crimped designs.

Key Features
  • High Strength Connection - Welded structure ensures durability under heavy load and vibration
  • Excellent Air Tightness - Reduced risk of air leakage, longer service life
  • Stable Installation - Firm mounting, no loosening during operation
  • Fatigue Resistant - Suitable for continuous compression cycles
Firestone Style 19 Compatible Parts
Blind nuts, 1/4 NPT
W013587008, W01-358-7008, W01 358 7008
Blind nuts, 1/4 NPT, bumper
W013587009, W01-358-7009, W01 358 7009
Blind nuts, 3/4 NPT
W013587011, W01-358-7011, W01 358 7011
Blind nuts 3/4 NPT, bumper
W013587012, W01-358-7012, W01 358 7012
Countersunk steel bead rings 15/8 bolts, nuts, washers
W013587023, W01-358-7023, W01 358 7023
Rubber bellows only
W013580134, W01-358-0134, W01 358 0134
Product Drawing
W01-358-7023 Firestone Convoluted Type Air Spring Style 19 Welding Flange Process Rubber Air Bags 0

label:

de lentes van de luchthelper,

de delen van de luchtopschorting,

de ingewikkelde luchtlente
