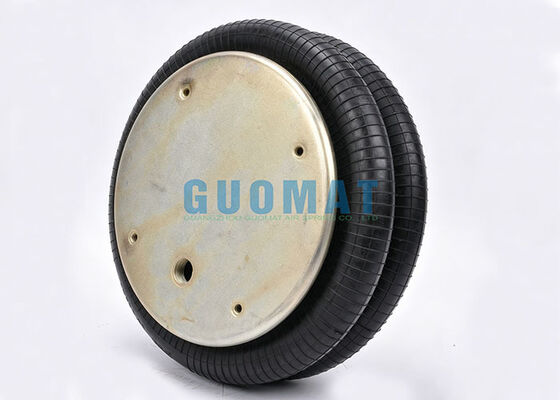

FD530-30 CI Contitech Double Convoluted Air Spring Bags 3/4 NPT Air Fitting Industrial Air Shock

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	GUOMAT
Certificering:	ISO/TS16949:2009
Modelnummer:	2B53030

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	6 stuks
Prijs:	$99.9-159.9/pc
Verpakking Details:	Sterke kartonnen doos of zoals klanten nodig hebben
Levertijd:	2-8 werkdagen
Betalingscondities:	T/T,Western Union,L/C
Levering vermogen:	1000 stks/week

Contact

Gedetailleerde productomschrijving

Lente soort:	Dubbel ingewikkeld type	Garantie:	12 maanden
Materiaal:	Metal+Rubber	Verpakkingsgrootte:	242424 (cm)
OEM-nummer:	ContitechFD530-30	Goed jaar:	2B14-363, 2B14-451, 2B15-377, 2B15-378
Gecomprimeerde hoogte:	3,03"	andere naam:	Industriële luchtveerzakken
Markeren:	Contitech double convoluted air spring , industrial air shock with NPT fitting , FD530-30 air spring bags

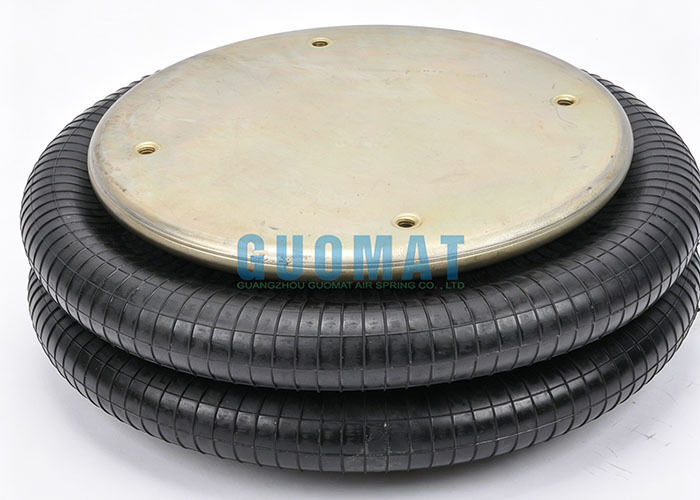

FD530-30 CI Contitech Double Convoluted Air Spring Bags

Industrial air shock with 3/4 NPT air fitting for heavy-duty applications

Product Specifications

GUOMAT Number: 1B53030
Spring Material: Natural Rubber
Factory Warranty: 1 Year Warranty
MOQ: 10 Pieces
Spring Type: Single Convoluted Type
Failure Testing: ≥3 million cycles
Working Temperature: -40℃ to +70℃

Replacement Part Numbers

Contitech: 7731, FD530-30, FD 530-30, FD530-30 CI, FD 530-30 CI, FD530-30CI3/4NPTOS, FD 530-30 CI 3/4NPT OS

Firestone: W01-358-9529, WO1-358-9529, W01 358 9529, WO1 358 9529, W013589529, WO13589529

Goodyear: 2B14-363, 2B14-451, 2B15-377, 2B15-378

Technical Data

Top Cover Plate Diameter: Ø11.30"
Gas Hole / Air Inlet: 1/4NPTF; 3/4NPT
Screw Center Distance of Top Cover Plate: 6.25"
Top Cover Plate Screw (Nut) Tooth: 4X3/8UNC, 0.59in
Bottom Cover Plate Diameter: Ø11.30"
Screw Center Distance of Bottom Cover Plate: 6.25"
Bottom Cover Plate Screw (Nut) Tooth: 4X3/8UNC, 0.59in
Rubber Bellow MAX Diameter: 15.75"
Working Stroke: Max. 13.8" - Min. 3.0"
Minimum Pressure: 0 psi
Return Force to Minimum Height: ≤90 lbf
Overall Weight: 16.1 lb

Vibration Isolation - Dynamic Characteristic Values

Pressure P (psi)	40	60	80	100	120	Vol V(in³)
Force (Load) (lbf)	3560	5440	7350	9360	11200	1200
Spring Rate (lbf/in.)	1010	1380	1790	2170	2630
Natural Frequency f0 (Hz)	1.6	1.6	1.5	1.5	1.5

Pneumatic Application - Static Characteristic Values

Height H (in.)	Pressure P (psi)	40	60	80	100	120	Vol V(in³)
12	Force F (lbf)	2550	3920	5400	6960	8660	1400
10.5	Force F (lbf)	3440	5230	7070	9010	10800	1200
9	Force F (lbf)	4160	6280	8390	10600	12700	1100
7.5	Force F (lbf)	4750	7160	9420	11900	14300	900
6	Force F (lbf)	5250	7840	10200	12900	15400	710
4.5	Force F (lbf)	5650	8370	10800.0	13500	16200	520
