SP 2 B 22 R Double Convoluted Air Spring G 3/4 Air Inlet Big Travel Phoenix Rubber Bellows

SP 2 B 22 R Double Convoluted Air Spring G 3/4 Air Inlet Big Travel Phoenix Rubber Bellows

Productdetails:
Plaats van herkomst: China
Merknaam: GUOMAT
Certificering: ISO/TS16949:2009
Modelnummer: 2B6330M12-G3/4
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 6 stuks
Prijs: US$59.9-69.9/PC
Verpakking Details: Sterke kartonnen doos of zoals klanten nodig hebben
Levertijd: 3-7 werkdagen
Betalingscondities: L/C, D/A, D/P, T/T, Western Union
Levering vermogen: 1000 stks/week
Contact
Gedetailleerde productomschrijving
Naam: Rubberen luchtveer steekproef: Beschikbaar
Kwaliteit: 100% geïnspecteerd Met schroefdraad: M12
Laagnummer: 2 Convolutie Garantieperiode: 12 maanden
PHOENIX: SP 2 B 22 R Bodemplaat Dia: 225 mm
Markeren:

Double Convoluted Air Spring

,

Rubber Bellows Air Spring

,

G 3/4 Air Inlet Spring

SP 2 B 22 R Double Convoluted Air Spring
G 3/4 Air Inlet Big Travel Phoenix Rubber Bellows
Product Overview
The GUOMAT double convoluted air spring is engineered to replace Phoenix SP 2 B 22 R rubber bellows in demanding industrial environments. Designed with a G 3/4 air inlet and large working stroke, this air spring delivers reliable load-bearing capability while providing exceptional vibration isolation and movement compensation.
Its double convoluted structure allows greater vertical travel than traditional rubber mounts, making it suitable for equipment that requires continuous motion, shock absorption, or variable load support. The flexible rubber bellows automatically adapt to changing operating conditions, helping protect machinery components from excessive vibration and impact forces.
Built with premium elastomer materials and reinforced cord construction, the air spring maintains stable performance under repetitive compression cycles. It is widely used in industrial automation systems, conveyors, lifting devices, machine tools, and vibration-sensitive production equipment.
Product Specifications
Product Type Double Convoluted Rubber Air Spring
Brand GUOMAT
GUOMAT Part Number 2B6330M12-G3/4
Reference Model SP 2 B 22 R
Cross Reference Numbers
  • Phoenix: SP2B22R
  • Phoenix: SP 2B22R
  • Phoenix: SP 2B 22R
  • Phoenix: SP 2B 22 R
Technical Data
Top Cover Plate
Diameter: 225mm, 2 M12 threaded holes, center-to-center distance between bolts: 157.5mm
Vent specification: G3/4, center-to-center distance between vent and threaded holes: 73mm
Bottom Cover Plate
Diameter: 225mm, 2 M12 threaded holes, center-to-center distance between bolts: 157.5mm
Dimensions
Natural outer diameter: 325mm, Design height: 180mm, Maximum height: 280mm, Minimum height: 80mm
After-Sales Support
GUOMAT is committed to providing comprehensive after-sales service and technical support for every customer. Our experienced engineering team assists customers throughout the entire purchasing process, from product selection and cross-reference identification to installation guidance and maintenance recommendations.
Additional Services Include:
  • One-year warranty against manufacturing defects
  • Technical consultation before and after purchase
  • Cross-reference and interchange assistance
  • Installation and application guidance
  • Fast response to product inquiries and service requests
  • Global shipping and logistics support
  • Quality inspection reports available upon request
Product Images

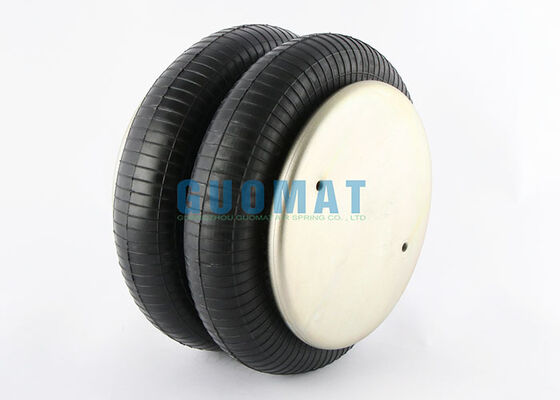

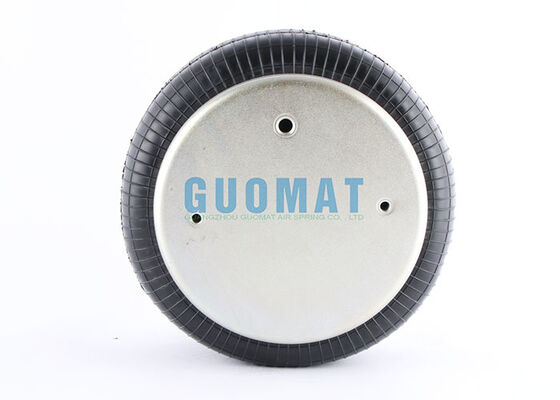

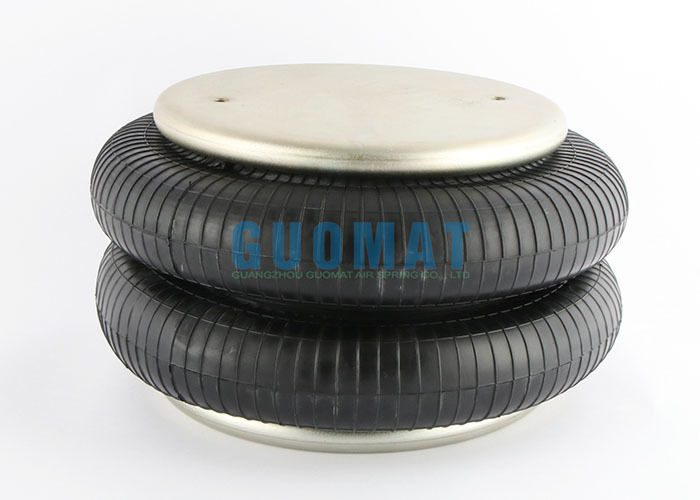

GUOMAT SP 2 B 22 R Double Convoluted Air Spring - Front View GUOMAT SP 2 B 22 R Double Convoluted Air Spring - Side View
