6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption

6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption

  • 6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption
  • 6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption
  • 6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption
6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption
Productdetails:
Plaats van herkomst: China
Merknaam: GUOMAT
Certificering: ISO/TS16949:2009
Modelnummer: 2B6X2P
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 6 stuks
Prijs: US$129.9-159.9/PC
Verpakking Details: Sterke kartonnen doos of zoals klanten nodig hebben
Levertijd: 3-7 werkdagen
Betalingscondities: Western Union,T/T,D/P,D/A,L/C
Levering vermogen: 1000 stks/week
Contact
Gedetailleerde productomschrijving
Naam: Rubberen luchtveer Winding: Dubbele
OEM: Aanvaardbaar Garantie: 12 maanden garantie
Plaats van oorsprong: Guangdong, China Transportpakket: Karton
Blaasbalgenaantal: 6''X2 Contitech: W01-R58-4070
Markeren:

Firestone Rubber Air Spring 6x2

,

W01R584070 Air Spring Shock Absorption

,

FD 76-14 DI Contitech Equipment Air Spring

6"x2 W01R584070 Firestone Rubber Air Spring FD 76-14 DI Contitech Equipment Shock Absorption
The 6" x 2 Firestone W01R584070 rubber air spring is a high-performance double convoluted industrial air bellow designed for vibration isolation, load support, and shock absorption in industrial machinery and suspension systems.
The GUOMAT replacement model 2B6X2P is fully compatible with leading OEM part numbers such as Firestone W01-R58-4070, Contitech FD 76-14 DI, and Norgren PM/31062, making it a reliable and cost-effective aftermarket solution for a wide range of equipment applications.
OEM Compatibility
  • Continental ContiTech: FD 76-14 1/2 M8
  • Continental ContiTech: FD 76-14 DI G1/2
  • Continental ContiTech: FD 76-14 DI G1/2 M8
  • Continental ContiTech: FD 76-14 DI G1/2 CR
  • Continental ContiTech: FD 76-14 DI CR G1/2
  • Continental ContiTech: FD 76-14 DI CR /FD76-14DICR /FD7614DICR
  • Continental ContiTech Bellow: FD 76-14/FD76-14/FD7614
  • Firestone No.: W01-R58-4070/W01 R58 4070/W01R584070
  • Firestone Style: 6"x2
  • Dunlop FR: 6"x2 SP1646 (COMPOSITE)
  • Dunlop FR: 6"x2 SP2917 (ALUMINIUM)
  • Dunlop UK (Pneuride): A 3 1330 02 01/A313300201
  • Norgren: PM/31062/ PM 31062/PM31062
  • Nominal 0 (inch) x convolutions: 6" x 2/6"x2/6x2
Technical Specifications
Cover plate diameter: 152.5 mm
Threaded holes: M8
Center-to-center distance between threaded holes: 127 mm
Maximum outer diameter: 178 mm
Maximum height: 195 mm
Minimum height: 80 mm
Pressure vs Height Performance Data
Height H (mm) 3 bar 4 bar 5 bar 6 bar 7 bar 8 bar VoI.V(cm³)
75 566 764 942 1139 1318 1507 317
105 493 665 807 967 1133 1282 780
130 406 548 665 800 936 1062 1098
155 314 419 517 616 727 824 1329
195 111 142 191 234 265 310 1549
Applications
  • Industrial machinery vibration isolation
  • Press machines and die cushion systems
  • Conveyor systems and automation equipment
  • Light truck and trailer suspension systems
  • Cab suspension systems
  • Industrial shock absorption platforms

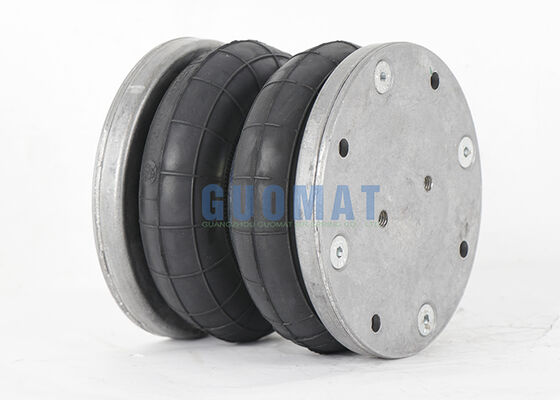

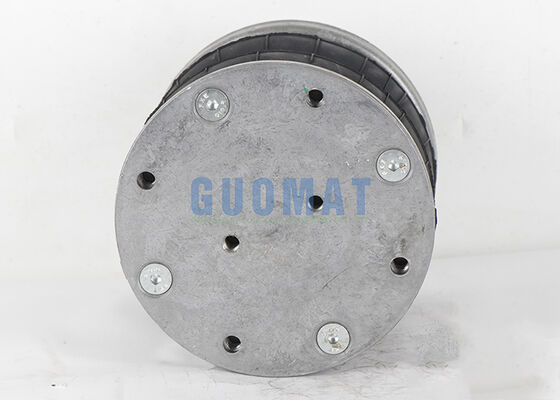

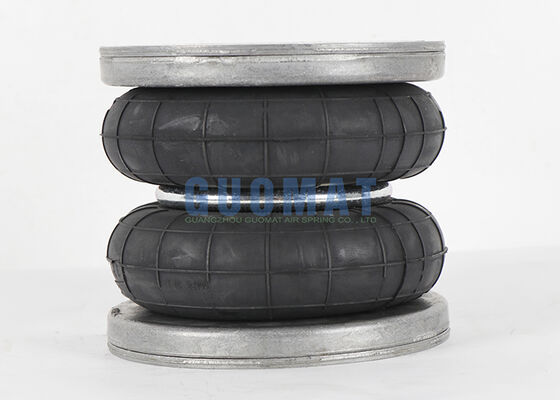

6x2 Firestone W01R584070 Rubber Air Spring - Industrial shock absorption component

label:

De dubbele Ingewikkelde Luchtlente,

de drievoudige ingewikkelde luchtlente,

de industriële luchtlentes
