| Plaats van herkomst: | CHINA |
| Merknaam: | Goodyear |
| Certificering: | ISO/TS16949:2009 |
| Modelnummer: | 3B14-450 |
| Min. bestelaantal: | 1PC |
|---|---|
| Verpakking Details: | sterke kartondoos of als klantenbehoefte |
| Levertijd: | 2-8 het werkdagen |
| Betalingscondities: | T/T, Western Union, Paypal of anderen |
| Levering vermogen: | 1000pcs/week |
| materiaal: | Staal en Rubber | Goodyear: | 3B14-450 |
|---|---|---|---|
| Garantie: | 12 maanden | Gewicht: | 8,0 kg |
| Andere Naam: | de delen van de luchtopschorting | Drukcapaciteit: | 0.2-0.8 m-Pa |
| Goodyear GEBOGEN NUMMER: | 556-33-8-335 | Pakketgrootte: | 38*38*22 cm |
| Hoog licht: | 556-33-8-335,3B14-450 Air Spring Bellows,Firestone W013587845 |
||
556-33-8-335 Goodyear 3B14-450 Air Spring Bellows FIRESTONE W013587845 For AUTOMANN ABSP3B32RA-7845

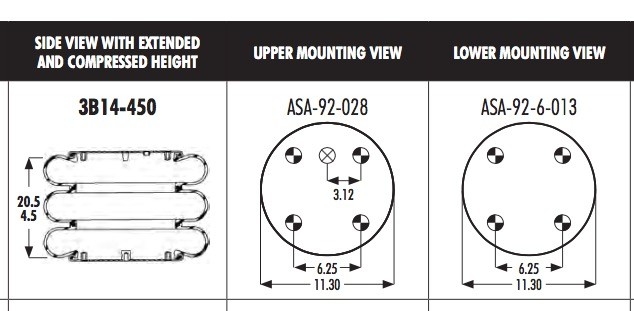

Goodyear 3B14-450 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcsX3/8-16UNC
Screw Center Distance of Top Cover Plate : 158.8 mm
Bottom Cover Plate Screw (Nut) Tooth : 4pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 158.8 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF
❸ Cover Plate
Top Cover Plate Diameter: 289 mm
Bottom Cover Plate Diameter: 289 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 356 mm
Rubber Bellows Natural Diameter :282 mm
Design Height: 9-13 inches / 229mm-330mm
Maximum Height : 460 mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
OEM Original Equipment Manufacturer:
Goodyear 3B14-450
Goodyear 556-33-8-335
FIRESTONE W013587845
AUTOMANN ABSP3B32RA-7845
| 57893245000000 | 57893245000000 | 20095074 | Y | 3B14-450 | 3B14-450 |
| 57893245000004 | 3B14-450 | 20116866 | N | 3B14-450 Bellows Air Spring | 3B14-450 Bellows Air Spring |
| 57893245000019 | 57893245000019 | 20095075 | Y | ENIDINE YI-3B14-450 | ENIDINE YI-3B14-450 |
| 57893245100000 | 893-2451 | 20881107 | N | AIR SPRING BELLOWS | AIR SPRING BELLOWS |
| 57893245100004 | 3B14-451 | 20095076 | N | 3B14-451 Bellows Air Spring | 3B14-451 Bellows Air Spring |
| 57893245200004 | 3B14-452 | 20035828 | N | 3B14-452 Bellows Air Spring | 3B14-452 Bellows Air Spring |
| 57893245300000 | 57893245300000 | 20099809 | Y | 3B14-453 | 3B14-453 |
| 57893245300004 | 3B14-453 | 20116867 | N | 3B14-453 Bellows Air Spring | 3B14-453 Bellows Air Spring |
| 57893245300019 | 57893245300019 | 20099880 | Y | ENIDINE YI-3B14-453 | ENIDINE YI-3B14-453 |
| 57893245400000 | 57893245400000 | 20116427 | Y | 3B14-454 | 3B14-454 |
| 57893245600004 | 3B14-456 | 20254221 | N | 3B14-456 Bellows Air Spring | 3B14-456 Bellows Air Spring |
| 57893245700004 | 3B14-457 | 20254222 | N | 3B14-457 Bellows Air Spring | 3B14-457 Bellows Air Spring |
| 57893245800004 | 3B14-458 | 20254223 | N | 3B14-458 | 3B14-458 |
| 57893245900004 | 3B14-459 | 20254224 | N | 3B14-459 Bellows Air Spring | 3B14-459 Bellows Air Spring |
| 57893246000004 | 3B14-460 | 20254226 | N | 3B14-460 | 3B14-460 |
| 57893246100004 | 3B14-461 | 20254227 | N | 3B14-461 | 3B14-461 |
| 57893246200004 | 3B14-462 | 20254228 | N | 3B14-462 Bellows Air Spring | 3B14-462 Bellows Air Spring |
| 57893246300004 | 3B14-463 | 20254229 | N | 3B14-463 Bellows Air Spring | 3B14-463 Bellows Air Spring |
| 57893246400004 | 3B14-464 | 20254230 | N | 3B14-464 Bellows Air Spring | 3B14-464 Bellows Air Spring |
| 57893246500000 | 57893246500000 | 20395896 | Y | Halmek 556-3-3-8335M | Halmek 556-3-3-8335M |
| 57893246500004 | 57893246500004 | 20395897 | Y | 3B14-465 | 3B14-465 |
| 57893246600000 | 57893246600000 | 20583265 | Y | 3B14-466 | 3B14-466 |
| 57893246600004 | 3B14-466 | 20583266 | Y | 3B14-466 | 3B14-466 |
| 57893246700081 | 57893246700081 | 20668930 | Y | 3B12-467 JOHN DEERE AN404831 | 3B12-467 JOHN DEERE AN404831 |
| 57893246800095 | 57893246800095 | 20806487 | Y | P 3B12-312 | P 3B12-312 |
| 57893246900091 | 57893246900091 | 20811407 | Y | P 3B12-323 | P 3B12-323 |
| 57893246900095 | 57893246900095 | 20806488 | Y | P 3B12-323 | P 3B12-323 |
| 57893247000095 | 57893247000095 | 20806500 | Y | P 3B12-334 | P 3B12-334 |
| 57893247100095 | 57893247100095 | 20806501 | Y | P 3B14-452 | P 3B14-452 |
| 57893247200090 | 57893247200090 | 20810175 | Y | C 3B14-364 | C 3B14-364 |
| 57893247200094 | 57893247200094 | 20810176 | Y | C 3B14-364 | C 3B14-364 |
| 57893247300090 | 57893247300090 | 20810177 | Y | C 3B14-466 | C 3B14-466 |
| 57893247400094 | 57893247400094 | 20810224 | Y | C 3B15-375 | C 3B15-375 |
| 57893247500091 | 57893247500091 | 20810363 | Y | P 3B14-364 | P 3B14-364 |
| 57893247500095 | 57893247500095 | 20810364 | Y | P 3B14-364 | P 3B14-364 |
| 57893247600091 | 57893247600091 | 20810367 | Y | P 3B14-466 | P 3B14-466 |
