van de de Luchtlente 578-93-3-100 van 3B12-329 Goodyear FIRESTONE W013587990

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	Goodyear
Certificering:	ISO/TS16949:2009
Modelnummer:	3B12-329

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	Overeen te komen
Prijs:	onderhandelbaar
Verpakking Details:	sterke kartondoos of als klantenbehoefte
Levertijd:	2-8 het werkdagen
Betalingscondities:	T/T, Western Union, Paypal of anderen
Levering vermogen:	1000pcs/week

Contact

Gedetailleerde productomschrijving

materiaal:	De plaat van de staaldekking, rubberblaasbalgen	Goodyear:	3B12-329
Luchtmontage:	1/4 NPTF	Schroeftand:	3/8-16UNC
De Afstand van het schroefcentrum:	157,5 mm	De Diameter van de dekkingsplaat:	228,6 mm
Drukcapaciteit:	0.2-0.8 m-Pa	Slag:	120~457 mm
Netto gewicht:	7,5 kg	Pakketgrootte:	33 x 33 x 22 cm
Markeren:	de de Luchtlente van 3B12-329 Goodyear , 578-93-3-100 , CONTI VOET 330-29 546

Goodyear Air Spring 3B12-329 Bellows 578-93-3-100 FIRESTONE W013587990 CONTI FT 330-29 546

3B12-306 Cross others OEM

Goodyear 3B12-329

Goodyear 3B12 329

Goodyear 3B12329

Goodyear Flexmember 578-93-3-100

Goodyear Flexmember 578 93 3 100

Goodyear Flexmember 578933100

Contitech FT 330-29 546 CI 1/4 NPT

Contitech FT 330 29 546

Contitech FT330-29 546

Firestone: 8006；

Firestone:W01-358-7990

Firestone:W01 358 7990

Firestone:W013587990
Firestone: 7995；

Firestone:W01-358-7995

Firestone:W01 358 7995

Firestone:W013587995

AUTOMANN TRIANGLE
ABSP3B22R-7990 4547 ABSP3B22R-7995 WATSON
CONTI
64573
FT 330-29 546
FIRESTONE
7990
7995 W013587990 W013587995
& CHALIN
AS-0048-1F

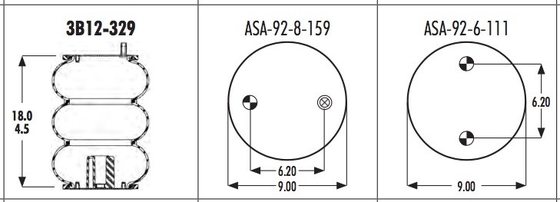

3B12-329 Goodyear Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth :Combination Stud : 1 pcs X – 3/4-16

Screw Center Distance of Top Cover Plate : 157.5 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157.5 mm

❷ Gas Hole / Air inlet / Air Fitting

Air Fitting – 1/4 NPTF

Screw Center Distance Between Gas Hole and Nut : 73 mm

❸ Cover Plate

Top Cover Plate Diameter: 228.6 mm

Bottom Cover Plate Diameter: 228.6 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter : 300 mm

The Working Stroke : MIN 120 mm to MAX 457 mm

Maximum Height : 457 mm

Minimum Height :120 mm

Stroke Height : 179mm

❺ Bumper block / Buffer block

WithBumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

van de de Luchtlente 578-93-3-100 van 3B12-329 Goodyear FIRESTONE W013587990 0

Other kinds of goodyear :


57893232700000	20132717	Y	3B12-327	3B12-327
3B12-327	20132718	N	3B12-327	3B12-327
57893232800000	20132490	Y	3B12-328	3B12-328
3B12-328	20132491	N	3B12-328 Bellows Air Spring	3B12-328 Bellows Air Spring
57893232800077	20215646	Y	3B12-328 WATSON & CHALIN AS0019	3B12-328 WATSON & CHALIN AS0019
57893232900000	20132492	Y	3B12-329	3B12-329
3B12-329	20132493	N	3B12-329 Bellows Air Spring	3B12-329 Bellows Air Spring
57893232900077	20215647	Y	3B12-329 WATSON & CHALIN AS0048-2G	3B12-329 WATSON & CHALIN AS0048-2G
57893233000000	20130960	Y	3B12-330	3B12-330
57893233000004	20130961	Y	3B12-330	3B12-330
57893233400000	20156850	Y	3B12-334	3B12-334
3B12-334	20156851	N	3B12-334	3B12-334
57893233400055	20551236	Y	3B12-334 FOR MDC	3B12-334 FOR MDC
57893233500000	20141253	Y	3B12-335	3B12-335
3B12-335	20141254	N	3B12-335 Bellows Air Spring	3B12-335 Bellows Air Spring
57893233600000	20141257	Y	3B12-336 HENDRICKSON HEBRON 004645	3B12-336 HENDRICKSON HEBRON 004645
57893233600004	20141258	Y	3B12-336 HENDRICKSON HEBRON 004645	3B12-336 HENDRICKSON HEBRON 004645
57893233700000	20156098	Y	3B12-337	3B12-337
3B12-337	20156099	N	3B12-337 Bellows Air Spring	3B12-337 Bellows Air Spring
57893233800000	20156259	Y	3B12-338	3B12-338
3B12-338	20156300	N	3B12-338 Bellows Air Spring	3B12-338 Bellows Air Spring
57893233900000	20160225	Y	3B12-339	3B12-339
3B12-339	20160226	N	3B12-339	3B12-339
57893234000000	20192659	Y	3B12-340	3B12-340
3B12-340	20192770	N	3B12-340	3B12-340
3B12-342	20407163	N	3B12-342 Bellows Air Spring	3B12-342 Bellows Air Spring
57893234200077	20252809	Y	3B12-342 WATSON & CHALIN AS0048-3G	3B12-342 WATSON & CHALIN AS0048-3G
57893234300000	20268045	Y	3B12-343	3B12-343
3B12-343	20268046	N	3B12-343	3B12-343
57893234400000	20271943	Y	3B12-344	3B12-344
57893234500000	20272670	Y	3B12-345	3B12-345
57893234500004	20272671	Y	3B12-345	3B12-345
57893234600000	20278885	Y	3B12-346	3B12-346
57893234600004	20278886	Y	3B12-346	3B12-346
57893234700000	20277829	Y	3B12-347	3B12-347
3B12-347	20277900	N	3B12-347 Bellows Air Spring	3B12-347 Bellows Air Spring
57893234900000	20334042	Y	3B12-349	3B12-349
3B14-349	20334045	N	3B12-349	3B12-349
