Materiaal:	Aluminiumlegering en Rubber	Firestone:	W01-358-7306
Garantie:	12 maanden	Netto gewicht:	19,5 kg
Andere naam:	De Lenteisolator van de de industrielucht	Drukcapaciteit:	0.2-0.8 m-Pa
Brutogewicht:	20,5 kg	Flensring:	Met of zonder
Verbindingsmethode:	Flensverbinding	De grootte van de flensring:	638 mm
BOUTcirkel DIA:	596 mm
Markeren:	Industriële de Schroefgaten van de Luchtlente , W01-358-7306 , 638mm Industriële de Schroefgaten van de Luchtlente

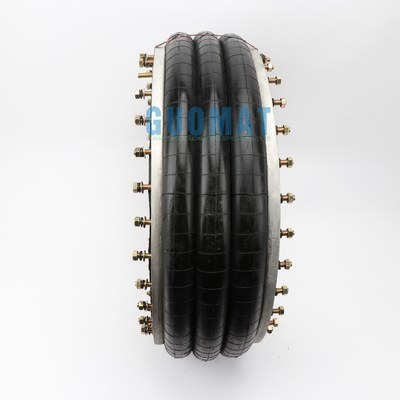

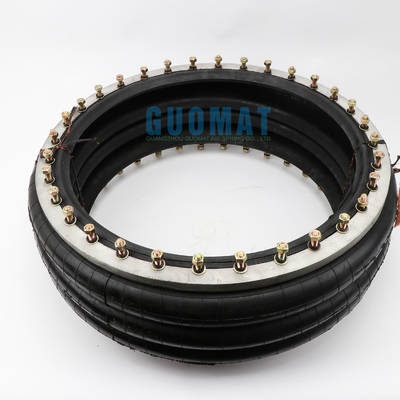

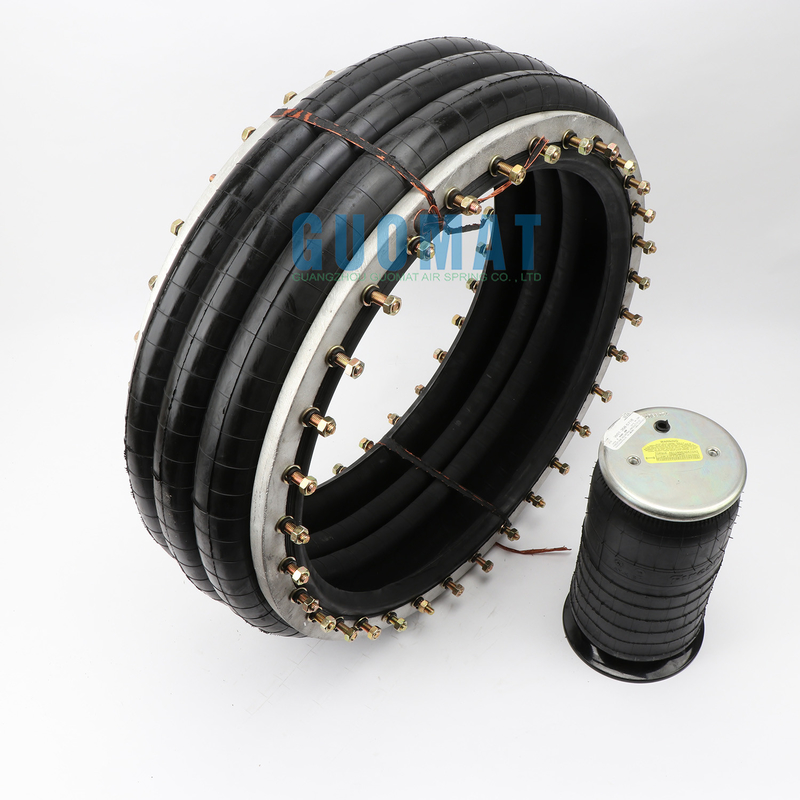

W01-358-7306 Firestone Industrial Air Springs Inch Screw Holes Two Ply High Strength Bellows Style 321

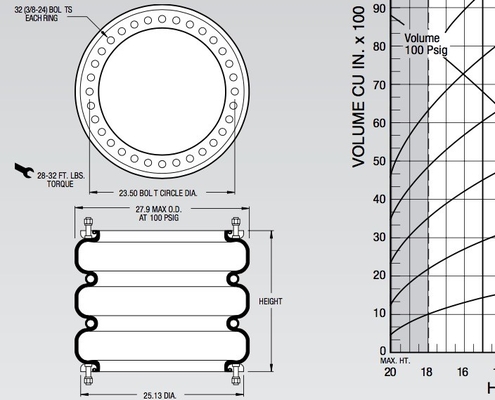

Industrial Triple Convoluted Air Spring Specifications

Description Assembly

Description
Assembly Order No.
Style 321

Ribbed neck aluminum beadrings (unequal spacing) 17/8 b,n,w

Firestone Bellows Number :321
Firestone Parts Number :W01-358-7306

Firestone Parts Number : W01 358 7306

Firestone Parts Number : W013587306

The sizes of W01-358-7306 Firestone Air Spring:

Manufacturer Part Number	W01-358-7306, W013587306, W01 358 7306 WO1-358-7306, WO13587306 WO1 358 7306	Bead ring Type	4
Maximum Diameter @ 7 Bar (mm)	709	Dim# C (Bolt Circle Diameter mm)	597
Maximum Height (mm)	114	# of Bolts (each ring)	32
Maximum Stroke (mm)	361	Design Height (mm)	381
Minimum Usable Height (mm)	475	3 Bar (kN)	78.5
25 mm (kN)	174.6	5 Bar (kN)	132.9
50% of Max Stroke (kN)	150	7 Bar (kN)	187.9
Maximum Stroke (kN)	106.5	Natural Frequency (@5 Bar)(fn(Hz)	1.2
Applicable Technigram?	113	7 Hz	97
Material	2-Ply, High Strength Cord	13 Hz	99.3
		25 Hz	99.8

The data of W01-358-7306 Firestone Air Spring:

Assembly Height (mm)		440	400	360	320	280	240	200	160
Volume @ 7 BAR (cu cm)		135784	125615	114722	102796	90465	77839	64589	50778
EFF Area @ 7 BAR (cm sq)		2394	2596	2757	2897	3026	3151	3277	3407
kN Force	@3 BAR	67.39	74.50	80.12	84.65	88.33	91.63	95.16	99.35
	@4 BAR	92.19	101.14	108.37	114.48	119.71	124.49	129.35	134.85
	@5 BAR	116.52	127.36	136.16	143.61	150.09	156.08	162.19	168.98
	@6 BAR	143.26	155.70	165.72	174.35	182.12	189.54	197.05	204.99
	@7BAR	167.54	181.66	192.94	202.76	211.80	220.56	229.36	238.43

The data 2 of W01-358-7306 Firestone Air Spring:

Dynamic Characteristics at 380 mm Design Height (Required for Airmount isolator design only)
Gauge Pressure (BAR)	Load (KN)	Spring Rate (kN/m)	Natural Frequency Hz
3	77.48	465	1.22
4	104.95	592	1.18
5	132.00	716	1.16
6	160.98	839	1.14
7	187.60	954	1.12
