FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags

FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags

  • FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags
  • FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags
  • FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags
  • FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags
FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags
Productdetails:
Plaats van herkomst: Guangzhou, China
Merknaam: GUOMAT
Certificering: ISO/Ts16949:2009
Modelnummer: 2B6905
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 6 stks
Prijs: $59.9-69.9/pc
Verpakking Details: Kartonnen verpakking of verpakking volgens de eisen van de klant
Levertijd: 5-8 werkdagen
Betalingscondities: L/C, T/T, Western Union
Levering vermogen: 10.000 per week
Contact
Gedetailleerde productomschrijving
Veermateriaal: Natuurlijk rubber Kwaliteit: 100% getest
functie: Schok verminderen Garantie: 12 maanden
Firestone: W01-358-6905 Goodyear: 2B9-206
Een beroerte: 81mm-274mm bufferblok: Met
Markeren:

Contitech replacement air spring

,

Firestone convoluted air bags

,

industrial air spring with warranty

FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags
Attribute Value
Spring Material Natural Rubber
Quality 100 % Tested
Function Reduce Shock
Warranty 12 Months
Firestone W01-358-6905
Goodyear 2B9-206
Stroke 81mm-274mm
Buffer Block With
Product Description

Brand: GUOMAT

Model No.: 2B6905

Bellows No.: 2B200

Manufacturer Warranty: 1 Year

Material: Rubber and Steel

Condition: Brand New

Packing: Carton/Pallet

Cross Reference Number
Firestone W01-358-6905
Contitech FD 200-19 315
Goodyear ZB9-206/209
Goodyear 578923200/2
Triangle 6325/4315
EZ Ride 8030120
Dayton 3546905
Leland Sc2071
Navistar 1685175C1
Hendrickson 458431
Hendrickson S3518/S5270
Ridewell 1003586905C
SAF Holland 57006905
Tuthill 6389
Watson&Chalin As0020
Silent Drive As6882
Technical Data
  1. Nut / Blind Nut
    Center Distance Between Threaded Holes and Air Holes: 38.5mm
    Screw Center Distance of Top Cover Plate: 89 mm
    Screw Center Distance of Bottom Cover Plate: 89 mm
  2. Gas Hole / Air inlet / Air Fitting
    Gas Hole / Air inlet: 1/4 N P.T.F. / 1/4NPTF
  3. Cover Plate
    Top Cover Plate Diameter: 160 mm
    Bottom Cover Plate Diameter: 160 mm
  4. Rubber Bellows
    Rubber Bellows MAX Diameter: 251.5 mm
    The Working Stroke: MAX 274 mm to MIN 81 mm
    Maximum Height: 274 mm
    Minimum Height: 81 mm
    Compression Height: 193 mm
  5. Bumper block / Buffer block
    With Bumper Block
  6. Girdle Hoop / Girdle Ring
    Without Girdle Hoop

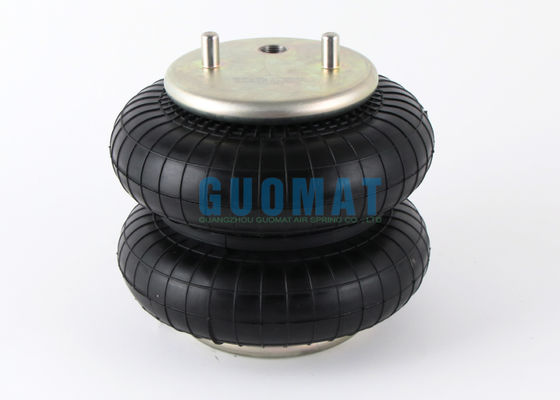

Product Images
FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags 0 FD 200-19 315 Contitech Replacement Air Spring W01-358-6905 Firestone Convoluted Air Bags 1

label:

de lentes van de luchthelper,

de delen van de luchtopschorting,

de ingewikkelde luchtlente
