W01-358-7444 Firestone Airide Double Convoluted Air Spring 22-1.5 Style Air Cushion

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	GUOMAT
Certificering:	ISO/TS16949:2009
Modelnummer:	2B7444

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	6 stks
Prijs:	$59.9-69.9/pc
Verpakking Details:	Sterke doos of zoals klanten nodig hebben
Levertijd:	2-8 werkdagen
Betalingscondities:	L/C, T/T, Western Union
Levering vermogen:	1000 stcs/week

Contact

Gedetailleerde productomschrijving

Naam:	Firestone industriële bellows actuator	Productmateriaal:	Rubber + staal
Garantie:	1 jaar	Type:	Met gas gevuld type
Positie:	Universeel	Ontwerphoogte:	10,5 duim
rubberbumper:	Met	Onderdeelnummer:	Firestone W01-358-7444
Markeren:	Firestone Airide double convoluted air spring , 22-1.5 style air cushion , industrial air spring with warranty

W01-358-7444 Firestone Airide Double Convoluted Air Spring 22-1.5 Style Air Cushion

Product Description

Rubber air springs, commonly known as pneumatic tubes, corrugated air tubes, and airbags, are precision-engineered rubber fiber bellows that don't inherently provide force or support loads. Instead, they transfer force and provide elasticity by filling them with compressed air via an air compressor. Depending on the required travel, air springs are typically designed with one to three curves, but can be manufactured with four or more curves if needed. Under certain conditions, two air springs can even be stacked.

Product Specifications

Model Number: 2B7444
Material: Rubber and Steel
Warranty: 1 Year

Compatible Replacement Parts

FIRESTONE Air Spring Assembly: W01-358-7444

FIRESTONE Air Spring Assembly: W01 358 7444

FIRESTONE Air Spring Assembly: W013587444

FIRESTONE Air Spring Assembly: WO1-358-7444

FIRESTONE Air Spring Assembly: WO1 358 7444

FIRESTONE Air Spring Assembly: WO13587444

FIRESTONE Air Spring Style: 22-1.5

GOODYEAR Air Spring Bag: 2B12-416

GOODYEAR Air Spring Bag: 2B 12-416

GOODYEAR Air Spring Bag: 2B12 416

Technical Data: 2B7444 GUOMAT Air Spring

Specification	Measurement
Maximum Height	11.1 inches
Maximum Stroke	8.1 inches
Minimum Usable Height	3 inches
Blind Nut Centers	6.2 inches
Port Offset from Blind Nut Centerline	2.88 inches
Design Height	10.5 inches
The Cover Plate Diameter	5.31 inches
Maximum Outer Diameter	8.6 inches
Port Offset	1/4 Air Fitting
Blind Nut	3/8-16 (5/8 DEEP)

Basic Air Spring Parameters

Medium: Air springs can be filled with compressed air, ammonia, or water. If water is used, an anti-rust layer must be added to protect the end caps.

Advantages of Liquid-Filled Air Springs

It reduces the volume of the gas inside the air spring, thereby increasing the air spring's natural frequency.
Because water is an incompressible medium, accurate positioning is possible.

Operating Specifications

Temperature: The operating temperature range of our standard industrial air springs is -40°C to +60°C.

Pressure:

Based on our experience, the maximum operating pressure for standard air springs is 0.7 MPa.
The maximum operating pressure for high-strength (four-layer carcass) air springs is 1.25 MPa.

We recommend a safety factor of 2.5 times between the maximum internal air pressure and the burst pressure. So, for example, if a pressure of 0.7 MPa is required, the burst pressure should be 1.75 MPa or greater. The burst pressure of a convoluted air spring decreases with increasing height. Therefore, there are two determining factors: the maximum height of extension, and what is the internal pressure at that point?

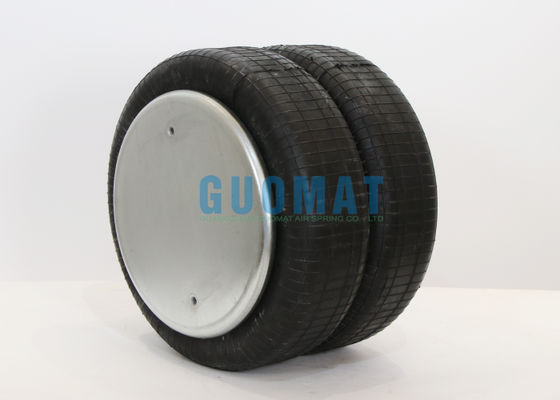

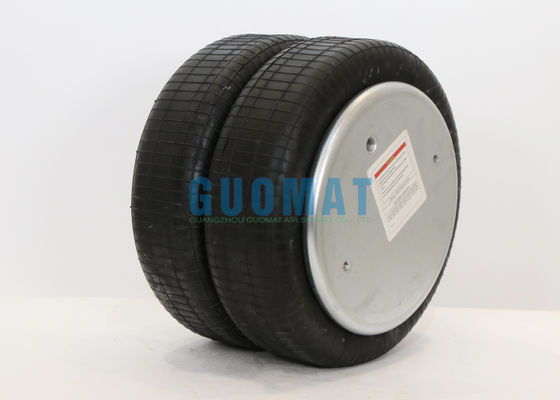

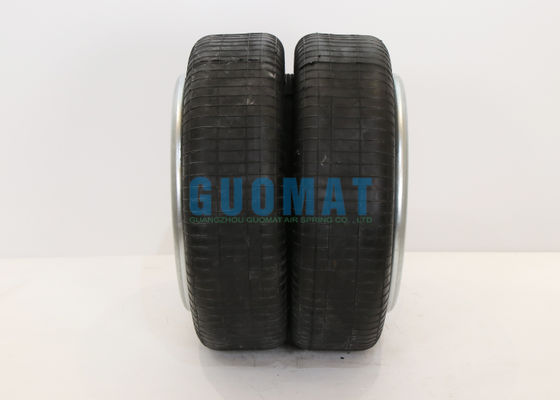

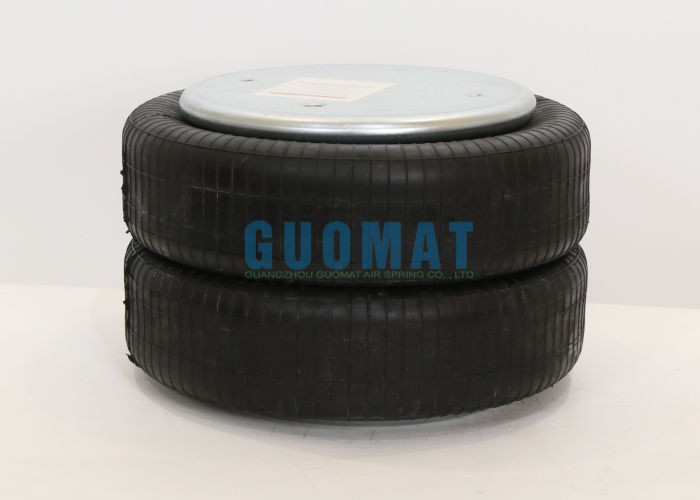

Product Images
